The frostiest

cargo bikes !

The frostiest

cargo bikes !

Refrigerated

From €325/month
food-negative-cold-groupe
food-positive-cold-groupe
food-isothermal-groupe
Previous
Next

Functional

250 kilos load and 1.3 m3 useful storage

Performing

Between 60 and 70 kilometers of autonomy

Unique

Temperature maintained between +4 and -25° C

Compliant

ATP FRA (positive) and FRC (negative) certified

Intelligent

Recording of regulatory data (temperature curve)

see other modules

Module under the microscope

Performance
Standard equipments
Models

Performance

  • Useful dimensions (mm) L x W x H:
    3 500 x 1 100 x 1 980
  • Inside dimensions (mm) L x W x H :
    1 325 x 902 x 1 080
  • 300 kg payload
  • 1.4 m3 useful storage
  • 70 km in FRA and 60 km of autonomy in FRC depending on the model
  • Capacity of 12 boxes of 600 x 400 x 300 mm
  • Carries an Europallet

Standard equipments

  • ATP approved body and cooling unit
  • Secure rear hatch with double seals
  • Stainless steel handle
  • Door contactor for counting the openings
  • Evaporator fans shut down when doors are opened
  • Automatic interior LED lighting



Options

  • Secure side opening
  • Bi-temperature
  • Several choices of interior layouts
  • Customizable covering

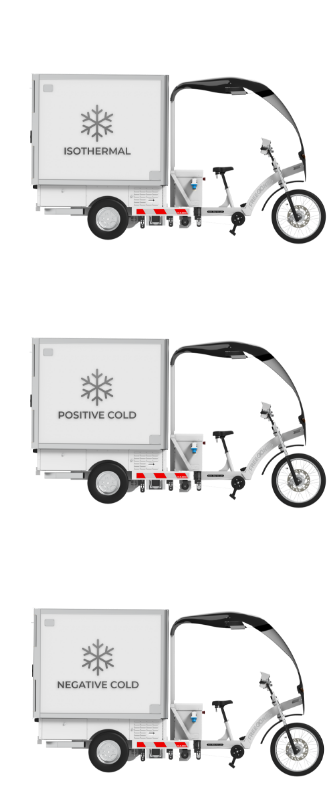

Models

Isothermal module

  • Module dimensions L x W x H :
    1 325 x 902 x 1 080
  • K coefficient approval: 0.31



Positive cold module

  • Module dimensions L x W x H :
    1 325 x 902 x 1 080
  • Positive cold up to 12 hours with 60 door openings of less than one minute, at a temperature of 30°C under shelter
  • Approved by Cemafroid within the framework of the ATP certification N°M874 (FRA)

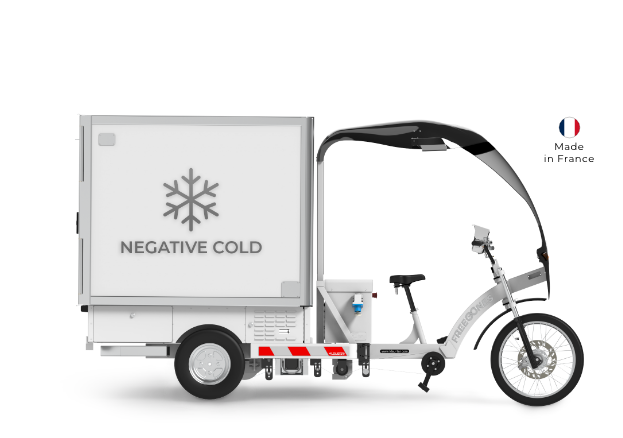

Negative cold module

  • Module dimensions L x W x H :
    1 325 x 902 x 1 080
  • Negative cold down to -25°C for up to 8 hours with 60 door openings of less than one minute, at a temperature of 30°C under shelter.
  • Approved by Cemafroid within the framework of the ATP certification N°M897 (FRC)

Why is it so unique?

Clever
Access every corner of the city without disturbance
Fitting
Fulfill your contracts efficiently
Effective
Win contracts requiring the transportation of goods in negative cold
Reliable
Secure your customers by providing proof of cold chain compliance
Long-lasting
Enhance your company’s image by reflecting its commitments
Innovative
Stand out with an atypical communication medium

The ideal tool

for these activities

  • Food delivery & pick up
  • Catering
  • Medical
  • Events
Kleuster Freegones Frigorifique

To go further

In 2022, more and more LTZs
Improving the daily lives of millions of French people…
Dark stores, the emerging supermarkets of tomorrow
10% of French people currently do their shopping online,…
The dark kitchens, these restaurants that only offer delivery
This is a concept that has highly grown since…
The importance of respecting the cold chain for the transport of foodstuffs
Respecting the cold chain means ensuring that refrigerated or…
New bike plans are coming to cities
New infrastructure, massive development of secure parking solutions, strengthening…
The cargo bike, the future of urban freight transport
Congestion in downtown areas is now a major concern…
All news

General

technical

specifications

  • Overall dimensions mm L / W / H: 3500 x 1100 x 1980
  • Up to 350 kg payload
  • Up to 2m3 useful volume
  • Up to 80 km, that is one full day’s autonomy
  • Top speed 18 km/h
  • Slopes up to 18%
  • Can hop onto sidewalks up to 15 cm tall
  • Electric brushless motor with automatic disengageable brake
  • 5.2 kWh lithium iron phosphate battery and dedicated BMS
  • 3,600 cycles battery life
  • One full day’s operation or 80 km
  • Full charge in 5 hours on a classic 16 A outlet
  • Energy regeneration on descent
  • Toothed belts transmission
  • Tubular frame and aluminum structure
  • Roll bar, high protection cabin
  • ABS roof protection
  • Optical quality windshield
  • High visibility reflective side strips
  • Hydraulic disc brakes
  • Full LED lighting
  • Anti-backwards system
  • Hill start assist
  • Cruise control up to 18 km/h
  • Emergency stop button
  • Up to 14 sensors: saddles, crankset, battery etc.
  • R-Vision system,without blind spot
  • Back-up warning sound
  • Forward and backward walking assistance 3km/h
  • Hill start
  • Ultra comfort seal
  • Position and ergonomics adapted to all users
  • Permanent stability system
  • Hydraulic front suspension with 100 mm articulation
  • HMI (color display) configurable according to country, profession, equipment
  • Double USB for charging
  • Kleuster Connect’ for geolocalisation, activity monitoring and preventive maintenance
  • Secure startup
Exemple de Location Longue Durée sur 60 mois, 60 loyers de 325 € HT, pour un Freegônes cellule frigorifique isotherme. Restitution du véhicule en fin de contrat avec paiement des frais de remise en état standard. Offre LLD non cumulable réservée aux professionnels, valable jusqu’au 31/03/2022 dans le réseau participant, sous réserve d’acceptation par Sofinco Finance, département de CA Consumer Finance, loueur, SA au capital de 554 482 422 euros – 1 rue Victor Basch – CS 70001 – 91068 Massy Cedex, RCS Evry 542 097 522. Intermédiaire d’assurance inscrit sous le N° ORIAS : 07 008 079 (www.orias.fr)
