The most versatile

cargo bike !

The most versatile

cargo bike !

Bed Tip-Up

From €290/month
groupe-390
groupe-378
Previous
Next

Functional

Up to 300 kg load and 1.8 m3 useful volume

Pragmatic

Up to 1.3 m load length

Ergonomic

47 cm loading threshold and flat bed tip-up

Enduring

Up to 80 km of autonomy

Versatile

Two models, short bed tip-up + trunk and long bed tip-up

see other modules

Module under the microscope

Performances
Equipments
Models

Performances

  • Useful dimensions (mm) L x W x H :
    3 500 x 1 100 x 1 980
  • Up to 300 kg payload
  • Up to 1.8 m3 useful storage
  • 80 km of autonomy
  • 47 cm loading height

Equipments

  • Lightweight aluminum bed tip-up, tilting on the long version
  • Wireless remote control
  • Removable curtains



Options

  • 600 mm curtains elevation
  • Customizable tarp (on long bed tip-up)
  • 220 V outlet for recharging tools
  • Several securing points to attach the elements
  • LED beacon
  • Flash sorting

Models

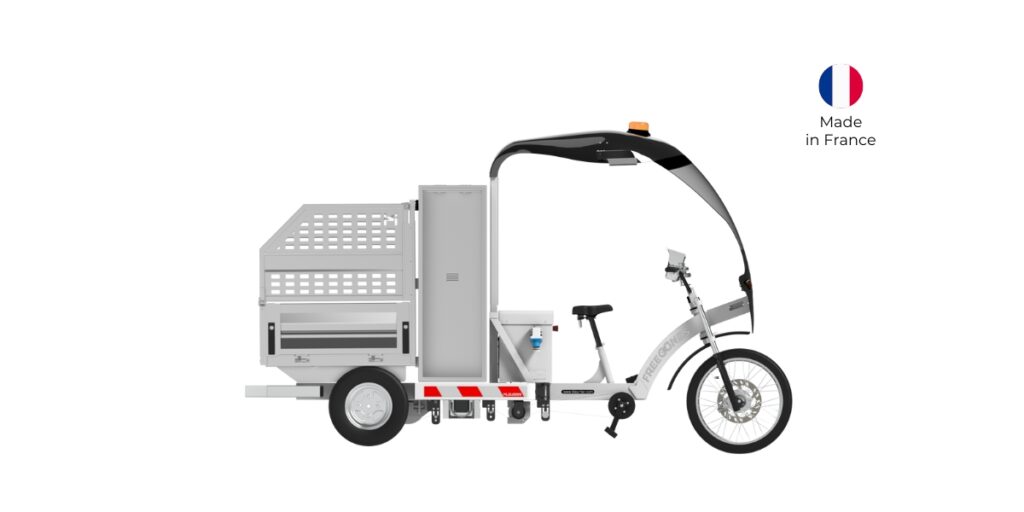

Short bed tip-up + trunk

  • Useful dimensions (mm) L x W x H : 850 x 1 026 x 359
  • 250 kg payload
  • 1m3 useful storage
  • 2/3 – 1/3 secure aluminum trunk with secure door

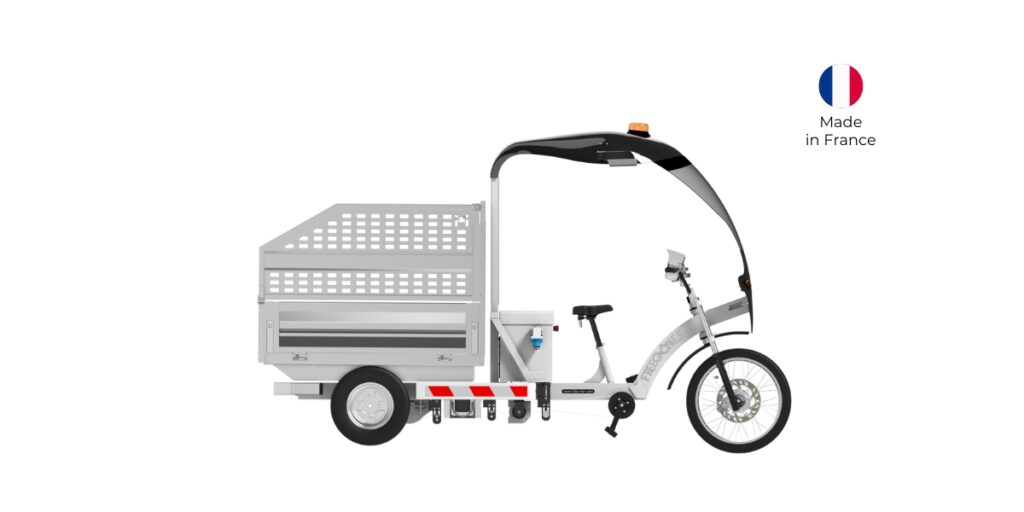

Long Bed Tip-Up

  • Useful dimensions (mm) L x W x H : 1 272 x 1 026 x 359
  • 1.5 m tilting bed tip-up
  • 300 kg payload
  • 1.8 m3 of useful storage





Why is it so unique?

Clever
Complete your missions with a non-intrusive and gentle tool
Long-lasting
Use a green tool that is consistent with your business values
Functional
Make the most of a work tool with proven versatility
Fitting
Gain competitive advantage in the bidding process
Wise
Prevent MSD and minimize the impact of the activity on employees
Innovative
Gain sympathy capital with a unique tool

The ideal tool

for these activities

  • Industry
  • Urban cleanliness
  • Collection
  • Recyclage
  • Maintenance of green spaces
  • Landscaping

To go further

In 2022, more and more LTZs
Improving the daily lives of millions of French people…
A duty of exemplarity for the State and local authorities
With the Climate and Resilience text and the resulting…
New bike plans are coming to cities
New infrastructure, massive development of secure parking solutions, strengthening…
These construction craftsmen who prefer cargo bikes to trucks
Practical and ecological, the cargo bike avoids many inconveniences,…
Municipalities are embracing the cargo bike
Many cities are affected by congestion and parking problems….
All news

General

technical

specifications

  • Overall dimensions mm L / W / H: 3500 x 1100 x 1980
  • Up to 350 kg payload
  • Up to 2m3 useful volume
  • Up to 80 km, that is one full day’s autonomy
  • Top speed 18 km/h
  • Slopes up to 18%
  • Can hop onto sidewalks up to 15 cm tall
  • Electric brushless motor with automatic disengageable brake
  • 5.2 kWh lithium iron phosphate battery and dedicated BMS
  • 3,600 cycles battery life
  • One full day’s operation or 80 km
  • Full charge in 5 hours on a classic 16 A outlet
  • Energy regeneration on descent
  • Toothed belts transmission
  • Tubular frame and aluminum structure
  • Roll bar, high protection cabin
  • ABS roof protection
  • Optical quality windshield
  • High visibility reflective side strips
  • Hydraulic disc brakes
  • Full LED lighting
  • Anti-backwards system
  • Hill start assist
  • Cruise control up to 18 km/h
  • Emergency stop button
  • Up to 14 sensors: saddles, crankset, battery etc.
  • R-Vision system,without blind spot
  • Back-up warning sound
  • Forward and backward walking assistance 3km/h
  • Hill start
  • Ultra comfort seal
  • Position and ergonomics adapted to all users
  • Permanent stability system
  • Hydraulic front suspension with 100 mm articulation
  • HMI (color display) configurable according to country, profession, equipment
  • Double USB for charging
  • Kleuster Connect’ for geolocalisation, activity monitoring and preventive maintenance
  • Secure startup
Exemple de Location Longue Durée sur 60 mois, 60 loyers de 290 € HT, pour un Freegônes plateau long. Restitution du véhicule en fin de contrat avec paiement des frais de remise en état standard. Offre LLD non cumulable réservée aux professionnels, valable jusqu’au 31/03/2022 dans le réseau participant, sous réserve d’acceptation par Sofinco Finance, département de CA Consumer Finance, loueur, SA au capital de 554 482 422 euros – 1 rue Victor Basch – CS 70001 – 91068 Massy Cedex, RCS Evry 542 097 522. Intermédiaire d’assurance inscrit sous le N° ORIAS : 07 008 079 (www.orias.fr)
